• Roof rack
• Front/rear body-color fascias
• Rear fascia scuff pad
• Front air dam
• Bright belt molding
• Body-color body-side molding
• Body-color sill applique
• Quad halogen automatic headlamps
• Fog lamps
• Body-color fold-away heated pwr mirrors
• Sunscreen glass
• Variable intermittent windshield wipers
• Rear window wiper w/washer
• Bright license plate brow
• Body-color door handles
• Dual pwr sliding doors
• Pwr liftgate

• Front 8-way pwr driver low-back bucket seats w/driver adjustable lumbar
• 2nd row fold-in-floor bucket seats
• 3rd row 60/40 fold-in-floor bench seat
• Stain & odor resistant anti-static seat fabric
• Front center console w/cupholder
• Pwr adjustable pedals
• Easy clean floor mats
• Tip start
• Tilt steering column
• Leather wrapped steering wheel w/mounted audio controls
• Trip computer w/temp & compass
• Warning lights inc: door ajar, low fluid, sliding door
• Tire pressure monitor
• Pwr front windows w/express down, driver express up
• 2nd row pwr windows
• Pwr rear quarter vent windows
• Pwr door locks
• Keyless entry w/immobilizer
• Speed control
• Universal garage door opener
• Air conditioning-inc: 3-zone temp control
• Rear window defroster
• AM/FM stereo w/CD/MP3 player-inc: (6) speakers
• Fixed mast antenna
• Analog clock
• Woodgrain instrument panel bezel
• Dual glove boxes
• Lower instrument panel cubby bin
• Illuminated cupholders
• Front/rear 12V DC pwr outlets
• 115V pwr outlet
• Premium door trim panel w/illuminated front door storage
• Interior observation mirror
• Overhead console
• Rear overhead console system w/storage bins
• Front illuminated visor vanity mirrors
• Interior assist handles
• Illuminated entry
• Rechargeable portable light
• Overhead ambient surround lighting
• Rear swiveling reading/courtesy lamps
• Leather wrapped shift knob
• Rear seatback grocery bag hooks
• Left rear quarter trim storage bin
• Liftgate flood lamp

• 4-wheel anti-lock disc brakes w/brake assist
• Driver & front passenger advanced multistage air bags
• All row side curtain air bags
• Child seat anchor system (LATCH ready)
• Electronic stability program
• Brake/park interlock
• Dual note horn

3.8L OHV SMPI V6 ENGINE

• (STD)

• Vehicle
• EPA Classification: 2WD Minivan
• Mileage
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 23
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 160
• Cooling System
• Total Cooling System Capacity (qts): 16.3
• Weight Information
• Base Curb Weight (lbs): 4399
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 200
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Twist Beam Axle
• Suspension Type - Front (Cont.): MacPherson Strut
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.9 x 1.10
• Rear Brake Rotor Diam x Thickness (in): 12.0 x 0.47
• Tires
• Front Tire Order Code: TUG
• Rear Tire Order Code: TUG
• Front Tire Size: P225/65R16
• Rear Tire Size: P225/65R16
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), Overall: 16.9
• Lock to Lock Turns (Steering): 3.14
• Turning Diameter - Curb to Curb (ft): 38.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 20.5
• Exterior Dimensions
• Wheelbase (in): 121.2
• Length, Overall (in): 202.5
• Width, Max w/o mirrors (in): 78.7
• Height, Overall (in): 68.9
• Track Width, Front (in): 65.0
• Track Width, Rear (in): 64.8
• Min Ground Clearance (in): 6.1
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): 24.4
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 49.0
• Cargo Box (Area) Height (in): 48.6
• Cargo Volume to Seat 1 (ft³): 144.3
• Cargo Volume to Seat 2 (ft³): 83.0
• Cargo Volume to Seat 3 (ft³): 32.7
• Interior Dimensions
• Passenger Capacity: 7
• Passenger Volume (ft³): 163.5
• Front Head Room (in): 39.8
• Front Leg Room (in): 40.6
• Front Shoulder Room (in): 63.0
• Front Hip Room (in): 57.6
• Second Head Room (in): 39.2
• Second Leg Room (in): 36.3
• Second Shoulder Room (in): 64.7
• Second Hip Room (in): 64.8
• Third Head Room (in): 37.9
• Third Leg Room (in): 31.8
• Third Shoulder Room (in): 62.0
• Third Hip Room (in): 48.7
• Summary

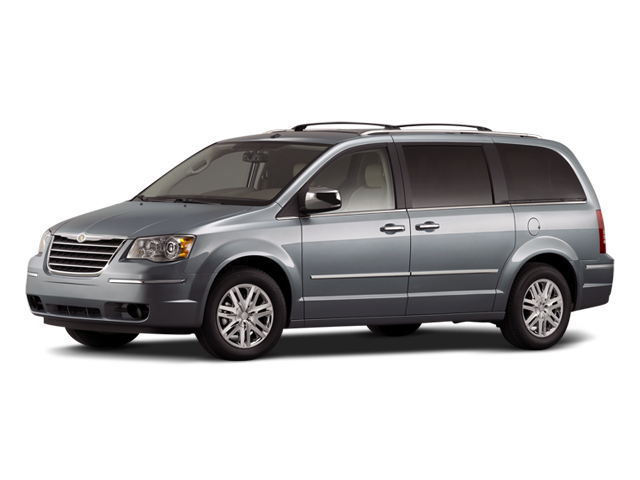

• Vehicle Name: Chrysler Town & Country
• Body Style: 4 Door
