2026 Ford Transit® Cargo Van in Southeast Michigan

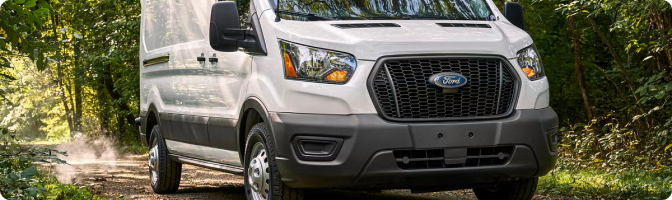

What is the 2026 Ford Transit® Cargo Van?

The 2026 Ford Transit® Cargo Van is Ford's full-size, body-on-frame commercial van engineered for trade work, fleet operations, delivery, and upfit applications. It's offered as a single base model that configures across multiple GVWR levels, body lengths, roof heights, and powertrains. Standard equipment includes the 10-speed automatic transmission with SelectShift®, electric power-assisted steering, four-wheel anti-lock disc brakes, push-button start, SYNC® 4 with a 12-inch center touchscreen, an 8-inch cluster display, a 5G embedded modem, Telematics Essentials, and Ford Co-Pilot360® driver-assist features.

Rear-wheel drive is standard, with Intelligent All-Wheel Drive available across configurations. Single Rear Wheel (SRW) and Dual Rear Wheel (DRW) configurations are offered depending on GVWR level. The Cargo Van sits alongside the Transit Passenger Van and the all-electric E-Transit Cargo Van in Ford's commercial vehicle line. Broader Ford new-vehicle research is covered on the Ford Model Research page.

What configurations are available for the 2026 Transit® Cargo Van?

The Cargo Van is configured along several axes that buyers choose based on work requirements rather than trim level. The four GVWR designations (T-150 through T-350 HD) define payload capacity, chassis strength, and component duty rating. Body length, roof height, wheelbase, engine, and drivetrain layer on top of the GVWR choice.

GVWR Designation	Defining Role	Max GVWR Range

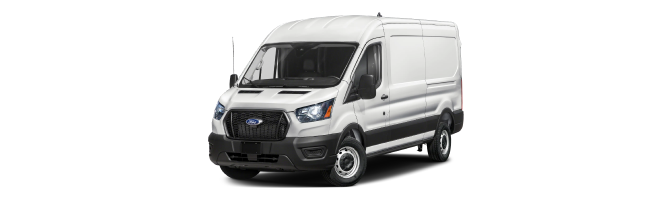

T-150	Light-duty entry; daily delivery, light trade	8,670 - 8,800 lbs

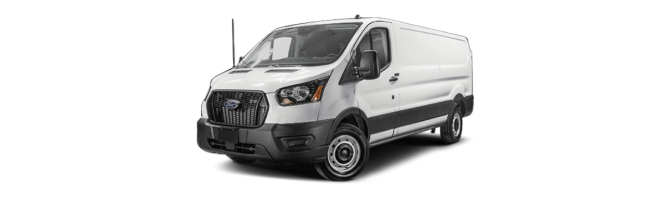

T-250	Mid-duty; standard contractor, parcel, and fleet	9,070 - 9,150 lbs

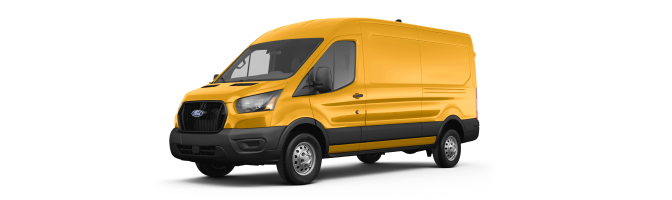

T-350	Heavy-duty; larger trades, sustained payload	9,500 lbs

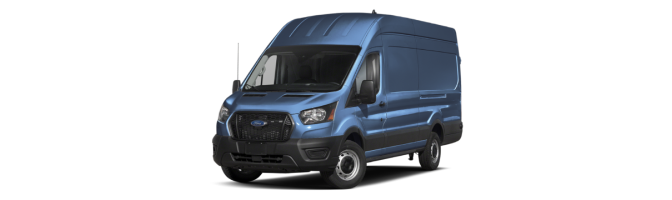

T-350 HD SRW/DRW	Heaviest-duty; max payload, max upfit weight	9,950 - 11,000 lbs

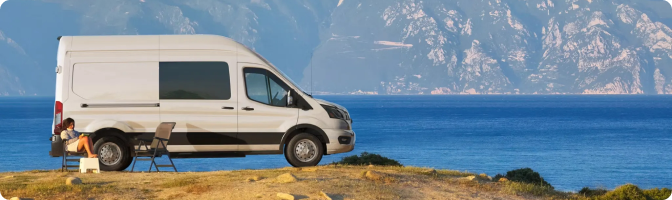

What's the cargo volume of the 2026 Transit® Cargo Van?

Cargo volume scales with body length and roof height. The Cargo Van offers six base body configurations and a maximum cargo volume of 536.4 cubic feet on the High Roof Long-EL.

Body Length	Roof Height	Cargo Volume Behind First Row	Maximum Cargo Volume
Regular	Low	246.7 cu ft	280.9 cu ft
Regular	Medium	315.2 cu ft	358.7 cu ft
Long	Low	277.7 cu ft	311.9 cu ft
Long	Medium	357.1 cu ft	400.5 cu ft
Long	High	404.3 cu ft	453.4 cu ft
Long-EL	High	487.3 cu ft	536.4 cu ft

Maximum cargo height runs from 56.9 inches in the Low Roof, up to 72 inches in the Medium Roof, and 81.5 inches in the High Roof. The 81.5-inch interior cargo height in the High Roof allows most adults to stand upright inside the van, which matters for buyers who load and unload regularly or work inside the cargo area.

Cargo length at the floor runs from 126 inches (Regular) to 143.7 inches (Long) to 172.2 inches (Long-EL). Cargo width between wheelhouses runs 54.8 inches across SRW configurations and narrows to 45.4 inches on the Long-EL DRW configuration. Side cargo door opening width is 51.2 inches across all configurations. Side cargo door opening height runs 49.6 inches on Low Roof and 63 inches on Medium and High Roof. Rear cargo door opening height ranges from 49.5 inches (Low Roof) to 64.9 inches (Medium Roof) to 74.3 inches (High Roof).

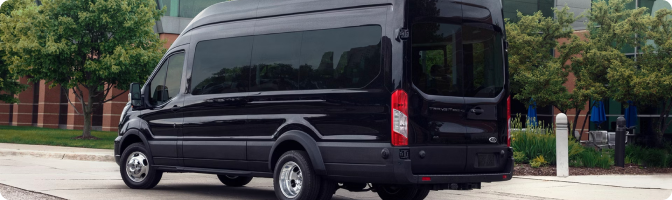

What roof heights and body lengths are available for the 2026 Cargo Van?

The Cargo Van comes in three roof heights and three body lengths, supported by two wheelbase options. The combination of roof and length is the central configuration decision for most buyers.

Roof heights

Roof	Exterior Height	Max Interior Cargo Height	Best Fit
Low Roof	82.2 - 82.9 in.	56.9 in.	Garage parking, low overhangs, urban delivery
Medium Roof	99.1 - 101.3 in.	72 in.	Most commercial parking with added cargo height
High Roof	109.6 - 110.4 in.	81.5 in.	Standing room inside; regular load/unload work

Body lengths

Length	Overall Length	Wheelbase	Cargo Length (at Floor)	Best Fit
Regular Length	217.8 - 219.9 in.	130 in.	126 in.	Tight urban delivery; dense routes
Long Length	235.5 - 237.6 in.	148 in.	143.7 in.	Standard commercial Cargo Van footprint
Long-EL (Extended)	263.9 in.	148 in.	172.2 in.	Heavy-volume operations; RV upfits; max interior space

The 253-degree rear door opening is standard on Long Wheelbase and Long-EL Wheelbase High Roof Cargo Vans for wider cargo access. The right combination depends on parking realities, route profile, and cargo profile. Low Roof Regular for tight urban delivery; High Roof Long-EL for heavy-volume work that benefits from standing-height interior and maximum cargo length.

What engines and drivetrain options are available for the 2026 Cargo Van?

The 2026 Cargo Van offers two engine options, both paired with the 10-speed automatic transmission with SelectShift®.

Engine	Output	Trim Availability
3.5L PFDi V6	275 hp @ 6,250 rpm / 260 lb-ft @ 4,000 rpm	Standard
3.5L EcoBoost® V6	300 hp @ 5,000 rpm / 400 lb-ft @ 2,500 rpm	Available

The 3.5L PFDi V6 is the standard naturally-aspirated engine with a port fuel and direct injection dual system. It's the value-tier engine for daily delivery and standard trade work. The 3.5L EcoBoost® V6 is the available twin-turbocharged engine that delivers higher horsepower and significantly higher peak torque (400 lb-ft at 2,500 rpm) for buyers who tow regularly, run at higher loaded weights, or operate on routes with significant grade.

Rear-wheel drive is standard across the lineup. Intelligent All-Wheel Drive is available across all GVWR levels, body lengths, and engine choices. The AWD system integrates into the platform without raising the load floor or seat height, so cargo dimensions stay consistent regardless of drivetrain choice. AWD adds Southeast Michigan winter traction confidence at the cost of a small payload reduction (about 65 to 200 pounds depending on configuration).

A 250-amp single alternator is standard with both engines. A dual alternator option (250 amps each) is available for upfits with significant electrical demand. A single 70 amp-hour AGM battery is standard, with an available dual AGM battery option (two 70 amp-hour batteries) for upfit-heavy applications. An engine block heater (400 watts) is standard, supporting cold-weather starting on Southeast Michigan winter mornings.

The standard fuel tank holds 25 U.S. gallons. An available 31-gallon Extended Range Fuel Tank supports longer routes between fill-ups, particularly relevant for parcel and delivery operations that cover high daily mileage.

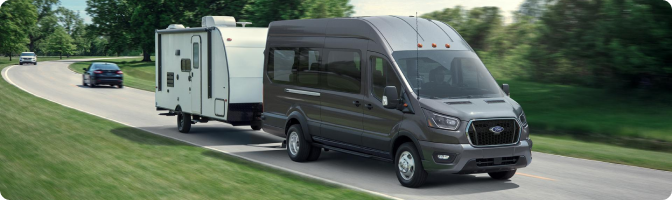

What can the 2026 Transit® Cargo Van tow and haul?

The 2026 Cargo Van's towing and payload figures vary substantially across configurations. Maximum towing reaches 6,900 pounds with the 3.5L EcoBoost® V6 in the 130-inch wheelbase. Maximum payload reaches 5,103 pounds on the T-350 HD Long-EL High Roof DRW configuration with the 3.5L EcoBoost® V6 at the 11,000-pound GVWR rating.

Maximum towing by engine and configuration

Engine	Wheelbase	RWD Max Tow	AWD Max Tow
3.5L PFDi V6 (4.10 axle)	130 in.	6,400 lbs	6,200 lbs
3.5L PFDi V6 (4.10 axle)	148 in.	6,300 lbs	6,100 lbs
3.5L EcoBoost® V6	130 in.	6,900 lbs	6,700 lbs
3.5L EcoBoost® V6	148 in.	6,800 lbs	6,600 lbs

The 3.5L EcoBoost® V6 with the 130-inch wheelbase Cargo Van is the maximum-tow configuration. The Heavy-Duty Trailer Tow Package adds the wiring, cooling, and trailer connection equipment needed for the maximum tow rating. The package includes a frame-mounted hitch receiver, rear jumpers, wiring provisions, and a connector assembly. Tow/Haul Mode with trailer wiring provisions and an optional Trailer Brake Controller are also offered.

Maximum payload by GVWR designation

GVWR Designation	Max Payload	Configuration That Achieves It
T-150	3,796 lbs	Regular Length, RWD, PFDi V6, 8,800 lb GVWR
T-250	4,146 lbs	High Roof Long, RWD, PFDi V6, 9,150 lb GVWR
T-350	4,496 lbs	Regular Length, RWD, PFDi V6, 9,500 lb GVWR
T-350 HD SRW	4,843 lbs	Low Roof Long, RWD, PFDi V6, 9,950 lb GVWR
T-350 HD DRW	5,103 lbs	High Roof Long-EL, RWD, EcoBoost V6, 11,000 lb GVWR

Specific payload depends on body length, roof height, drivetrain, engine, and any installed packages and accessories. Final payload for any specific configuration is confirmed via the door-jamb label at delivery.

What trade and upfit packages are available for the 2026 Transit® Cargo Van?

The 2026 Cargo Van is offered with factory-installed trade packages, cargo organization options, specialty prep packages, and electrical upfit equipment. These options let buyers configure the van for specific work without aftermarket modification.

Trade and specialty prep packages

Category	Package	Use
Trade-Specific	Electrician Trade Package	Electrical contracting work
Trade-Specific	HVAC Trade Package	Heating, ventilation, AC service
Trade-Specific	General Contractor Trade Package	General construction work
Specialty Prep	Ambulance Prep Package	Emergency-services upfitters
Specialty Prep	RV Prep Package	Recreational-vehicle upfitters
Specialty Prep	Parcel Delivery Package	Parcel-delivery fleet use
Specialty Prep	Builder's Prep Package	General upfit prep
Specialty Prep	Upfitter Package	Upfitter wiring and chassis prep

Cargo organization options

Option	Description
Wall Liner Kit / Heavy-Duty Wall Liner Kit	Interior wall protection
Heavy-Duty Scuff Plate Kit	Floor edge protection
Fixed Shelving	Multi-level driver-side only or driver/passenger sides
Foldable Aluminum Shelving	Two levels per side
Cargo Tie-Down Hooks	Six tie-down hooks
Front Overhead Shelf	Overhead cabin storage
Bulkhead Options	Lockable door with window or window only
Load Area Protection Package	Heavy-duty load floor and scuff plate protection

Electrical and upfit equipment

Equipment	Specification
Pro Power Onboard™	400 W mobile generator with 120V outlets
Vehicle Integration System 2.0	Upfit electronic integration platform
Auxiliary Fuse Panel	High-spec interface connector
Modified Vehicle Wiring System	For complex electrical upfits
Dual Alternator	250 amps each
Dual AGM Batteries	Two 70 amp-hour units
Auxiliary Heater/AC Prep Package	Without rear controls

The package list also covers a Heavy-Duty Trailer Tow Package (wiring, cooling, and a frame-mounted hitch receiver), a Heavy-Duty Front Axle (for heavy-upfit front-end loads), an Auxiliary Fuel Port Extension Line, and the Ford Connectivity Package (one-year included with a 7-year one-time-purchase option).

Pro Power Onboard™ is the single most-distinctive Cargo Van feature for trade buyers running powered tools off the vehicle. Trades that previously needed a separate generator (electricians, contractors with corded tools, mobile workshops) can run directly from the van's 400-watt outlet system.

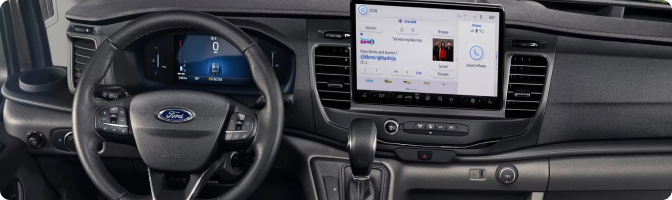

What technology and safety features come with the 2026 Cargo Van?

Standard tech on every 2026 Cargo Van centers on SYNC® 4 with a 12-inch center touchscreen and a 5G embedded modem with over-the-air update capability. Wireless Apple CarPlay® and Android Auto™ compatibility runs through SYNC® 4. The 8-inch cluster display covers tachometer, fuel level, and coolant temperature with customizable views, and Telematics Essentials supports fleet management for organizational buyers tracking vehicle utilization. Push-button start with passive entry, AM/FM stereo with Bluetooth and dual USB ports, and 12V PowerPoint outlets in the instrument panel and center console round out the cabin.

Ford Co-Pilot360® comes standard across the lineup and includes Lane-Keeping System, Pre-Collision Assist® with Automatic Emergency Braking, Post-Collision Braking, Auto High-Beam Headlamps, and front and rear parking sensors. A rear view camera is standard. Ford Co-Pilot360® Assist 2.0 is available on the Cargo Van as a step-up package; it adds Adaptive Cruise Control, Blind Spot Information System (BLIS®) with Cross Traffic Alert, a 360-Degree Camera, and front fog lamps. A Digital Rearview Mirror is available for buyers whose cargo or upfit equipment blocks the standard rearview mirror.

Active safety equipment runs across the lineup. Driver and passenger airbags and Safety Canopy® side-curtain airbags handle occupant protection. The SecuriLock® Passive Anti-Theft System with engine immobilizer, autolocking drive-away with crash unlocking, and the SOS Post-Crash Alert System™ cover anti-theft and post-incident response. A Tire Pressure Monitoring System is standard. A Back Up Alarm is available.

Ford Driving Technology

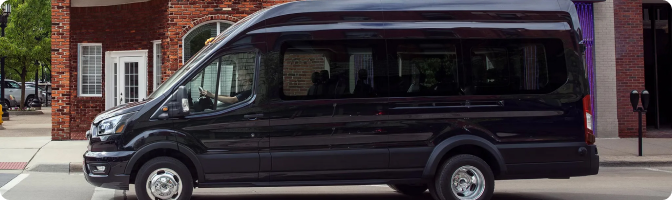

What does the 2026 Ford Transit® Cargo Van cost in Clinton Township?

The 2026 Cargo Van opens in the high-$40Ks for the base T-150 Low Roof Regular Length RWD configuration. Mid-tier configurations typically run in the mid-$50Ks (T-250 Medium Roof Long with the EcoBoost® V6 or AWD is a representative example). Fully-loaded T-350 HD AWD DRW configurations with EcoBoost® and trade packages reach the mid-$60Ks to mid-$70Ks. Final pricing depends primarily on GVWR designation, body length, roof height, engine choice, drivetrain, and trade package selection. Destination charge, taxes, and any current Specials or eligibility programs settle the total at the buying step.

The 2026 Cargo Van is currently offered with Employee Pricing for All, a Ford Motor Company promotion that prices the van at the Ford employee price for retail buyers. Commercial Fleet customers with a valid FIN code may qualify for extra combined incentives on select configurations. Lease and finance Specials are updated monthly at Dorian Ford. The pages below cover any current 2026 Transit® Cargo Van offers running this month.

Section 179 is the federal tax provision that lets qualifying business buyers deduct part or all of a commercial vehicle purchase in the year the vehicle is placed in service rather than depreciating the cost over several years. Whether a Cargo Van purchase qualifies (and at what deduction level) depends on the buyer's business structure, how the vehicle is used, and the federal program rules in effect for the tax year. The Section 179 page covers how the deduction commonly applies to Ford commercial vehicles like the Transit Cargo Van.

Section 179 Tax Deduction

Other eligibility-based programs may layer onto a 2026 Cargo Van purchase. A/X/Z Plan pricing is offered through a Ford program for eligible Ford Motor Company employees, retirees, and partner-company employees, with the qualification rules detailed on the A/X/Z Plan page. Military service members, first responders, and current college students or recent graduates each qualify for their own program with its own rules. Commercial fleet buyers with a valid FIN code may have access to fleet-specific Ford Motor Company programs depending on the size and structure of the purchase.

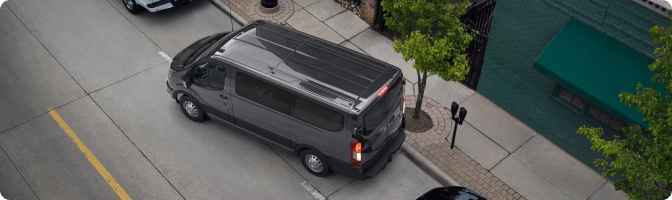

How do I buy or lease a 2026 Transit® Cargo Van at Dorian Ford?

There are three ways to land on a 2026 Cargo Van at Dorian Ford: browse the in-stock inventory, build a custom order to the exact spec, or test-drive a representative configuration before committing.

Soft-pull pre-approval at Dorian Ford doesn't affect your credit score. For commercial buyers, pre-approval is particularly useful because fleet financing structures (and the documentation those structures require) differ from retail financing, and seeing the numbers ahead of the configuration decision keeps the buying process moving.

Get Pre-Approved

The configuration matrix on the Cargo Van means almost every commercial buyer custom-orders rather than picking from in-stock inventory. The Ford build tool puts together a custom order to your specific GVWR designation, body length, roof height, engine, drivetrain, SRW or DRW, and trade package combination.

Custom Order Tool

Test drives are scheduled by appointment. For a Cargo Van, driving a representative configuration before ordering matters because size, visibility, and handling vary across roof heights, body lengths, and SRW versus DRW configurations more than buyers typically expect.

Schedule a Test Drive

Trade evaluations start online with an instant estimate. The final trade number is settled in person at the dealership.

Trade-In Value

Whether to lease or finance a Cargo Van usually comes down to mileage assumptions, tax treatment, and how long the van will stay in the operation. The Buying vs. Leasing guide walks through the trade-offs. Operators planning high mileage or multi-year use can also look at Ford Protect Extended Service Plans for coverage past the standard warranty.

Buying a Transit Cargo Van starts with the work. Different trades, routes, and load profiles point to different configurations on the build sheet, and the right combination of GVWR designation, body length, roof height, engine, and drivetrain comes from clarity about what the van will actually do day to day. Dorian Ford's Service and Collision departments handle commercial-schedule maintenance and body work after delivery. The configuration decisions get worked out before the order goes in so the van that arrives is built to do the work it's bought for.

What else should I know about the 2026 Ford Transit® Cargo Van?

The questions below cover details shoppers often want to confirm before scheduling a test drive or starting a custom order.
