2.0L EcoBoost® Engine Overview
The 2.0L EcoBoost® engine represents a pinnacle of engineering excellence, blending power, efficiency, and cutting-edge technology. This engine powers several prominent vehicles, offering a remarkable driving experience without compromising fuel economy. Below, we present the specifications of the 2.0L EcoBoost® engine and its applications in the 2024 Bronco Sport, 2024 Maverick, 2024 Edge, and 2024 Escape.
Go To:
- JUMP TO:
- Bronco Sport
- Maverick
- Edge
- Escape
Bronco Sport
Engine Specifications
| Engine Type: | 2.0L Ti-VCT GTDI I-4 |
| Drive Type: | Advanced 4x4 with Twin-Clutch Rear Drive Unit |
| Exhaust: | Dual Exhaust |
| Transmission Type: | 8-speed Automatic Transmission; SelectShift® with Paddle Shifters |
| Horsepower: | 250 @ 5,500 rpm |
| Torque: | 277 lb.-ft. @ 3,000 rpm |
| Compression Ratio: | 10.0:1 |
| Valve Lifters: | Direct acting mechanical bucket |
| Engine Block Material: | Aluminum |
| Cylinder Head Material: | Aluminum |
| Induction System: | Turbocharged |
| Fuel Delivery: | Direct Injection |
| Fuel (Minimum): | Regular unleaded (Premium recommended) |
Bronco Sport 2.0L EcoBoost Models
Bronco® Sport Badlands®
Ford Maverick
Engine Specifications
| Engine: | 2.0L EcoBoost® |
| Configuration: | Aluminum block and head, I-4 |
| Manufacturing Location: | Cleveland, Ohio and Valencia, Spain |
| Intake Manifold: | Composite |
| Exhaust Manifold: | Integrated |
| Valvetrain: | DOHC, Ti-VCT |
| Pistons: | Aluminum |
| Connecting Rods: | Powder Forged |
| Bore and Stroke: | 3.44 x 3.27 in. |
| Displacement: | 122 cu. in. |
| Compression Ratio: | 9.3:1 |
| Crankshaft: | Forged Steel |
| Horsepower: | 250 hp @ 5,500 rpm |
| Torque: | 277 lb.-ft. @ 3,000 rpm |
| Fuel Delivery: | GTDI |
| Oil Capacity: | 5.5 Quarts |
| Coolant Capacity: | 9.2 Quarts |
| Transmission: | 8-Speed Automatic (2.0L EcoBoost®) |
| Gear Ratios: |
|
Ford Edge
Engine Specifications
| Engine Type: | Twin-scroll 2.0L EcoBoost® I-4 turbocharged, direct-injection engine |
| Drive Type: | Intelligent All-Wheel Drive (STD.) |
| Exhaust: | Dual Integrated Exhaust System (Edge SE); Single exhaust with dual rolled polished tips (Edge Titanium) |
| Transmission Type: | 8-Speed Automatic |
| Horsepower (SAE net@rpm): | 250 @ 5,500 (tested with 93-octane fuel) |
| Torque (lb.-ft.@rpm): | 280 @ 3,000 (tested with 93-octane fuel) |
| Compression Ratio: | 9.7:1 |
| Valve Lifters: | Direct acting mechanical bucket |
| Engine Block Material: | Cast aluminum |
| Cylinder Head Material: | Cast aluminum |
| Induction System: | Turbocharged |
| Fuel Delivery: | Direct injection |
| Fuel (Minimum): | Regular unleaded |
| EPA-Estimated Ratings (Actual mileage will vary): | AWD: 21 city/28 hwy/23 combined mpg |
Ford Escape
Engine Specifications
| Engine Type: | 2.0L Ti-VCT GTDI I-4 |
| Drive Type: | Intelligent AWD |
| Exhaust: | Dual-Chrome Exhaust Tips |
| Transmission Type: | 8-speed Automatic Transmission with SelectShift® with Paddle shifters |
| Horsepower (SAE net@rpm): | 250 @ 5,500 rpm* |
| Torque (lb.-ft.@rpm): | 280 @ 3,000 rpm* |
| Compression Ratio: | 10.8:1 |
| Valve Lifters: | Roller finger follower |
| Engine Block Material: | Aluminum |
| Cylinder Head Material: | Aluminum |
| Induction System: | Turbocharged |
| Fuel Delivery: | Direct injection and port fuel injection |
| Fuel (Minimum): | Regular unleaded (Premium recommended) |
| EPA-Estimated Ratings AWD (Actual mileage will vary): | 23 City/31 Hwy/26 Comb MPG |
Engine Details
The 2024 2.0L EcoBoost® engine is designed for superior performance and efficiency. It features a turbocharged induction system that enhances power while maintaining excellent fuel economy. Turbocharging forces more air into the combustion chamber, increasing engine output without significantly increasing fuel consumption. This technology embodies the EcoBoost® philosophy of delivering more power with less fuel.
Injection System
Direct injection is a hallmark of the 2.0L EcoBoost® engine, spraying fuel directly into the combustion chamber for precise fuel control. This enhances combustion efficiency and power output. The twin-scroll turbocharger reduces turbo lag and maintains torque output over a broader range of RPMs, providing a more responsive driving experience.
Compression Ratios
The engine's compression ratios vary across different models, enhancing performance and efficiency. For example, the Bronco Sport features a 10.0:1 ratio, while the Escape offers a higher 10.8:1 ratio. Higher compression ratios improve thermal efficiency, extracting more energy from each fuel drop, which translates to better performance and fuel economy.
Engine Block Construction
Aluminum construction for both the engine block and cylinder head reduces the engine's weight, improving vehicle performance and fuel efficiency. Aluminum also provides excellent heat dissipation, enhancing engine durability and reliability.
Auto Start-Stop Technology
Auto Start-Stop Technology helps reduce fuel consumption and vehicle tailpipe emissions during city driving. The system switches off the engine when the vehicle comes to a stop and restarts it automatically when the brake pedal is released.
EcoBoost Technologies
EcoBoost Direct-Injection
This fuel-delivery technology injects fuel directly into the combustion chamber of each cylinder, balancing performance and efficiency.
EcoBoost Turbocharger
The turbocharger uses exhaust gasses to spin a turbine, which drives a compressor to force more air into the engine. This increases airflow, allowing smaller engines to generate power comparable to larger engines. The intercooler cools down the turbocharger's hot compressed air before it enters the engine, maintaining optimum operating temperature and performance.
Intelligent Oil-Life Monitor
The Intelligent Oil-Life Monitor calculates oil change service intervals based on actual vehicle use, operating conditions, and time since the last oil service.
System Details:
- A message will appear in the Information Display indicating when it’s time for an oil change.
- CHANGE ENGINE OIL SOON will appear when engine oil life remaining is 10% or less.
- ENGINE OIL CHANGE DUE or OIL CHANGE REQUIRED will appear when oil life reaches 0%.
- The oil change should be performed within two weeks or 500 miles of the ENGINE OIL CHANGE DUE or OIL CHANGE REQUIRED message appearing.
- Conditions that could accelerate an oil change interval include towing, short-distance driving, extended idle duration, and driving in extreme temperatures.
- The Intelligent Oil-Life Monitor must be reset after each oil change.
- Failure to perform scheduled maintenance as specified in the Scheduled Maintenance Guide may invalidate warranty coverage on parts affected by the lack of maintenance.
Edge Specific Features
The Edge’s twin-scroll 2.0L EcoBoost® engine includes several advanced features such as:
Broad, Flat Torque Curve: Delivers maximum torque through the powerband for sustained acceleration.
Lightweight Aluminum Components: Aluminum engine block with an aluminum ladder frame and cylinder head to reduce weight and aid efficiency.
DOHC Lightweight Cylinder Head: Features 4 valves per cylinder.
Ti-VCT: Twin-independent variable camshaft timing for optimized performance.
Reduced NVH: Cast-iron crankshaft, balance shaft, and silent chain cam drive system.
Adaptive Knock Control: For enhanced engine protection and performance.
Twin-scroll Low-Inertia Turbocharger: Separates exhaust pulses for pairs of cylinders, enabling quicker turbine spin-up and faster responsiveness.
Integrated Exhaust Manifold: Places the turbocharger closer to the exhaust ports for enhanced responsiveness.
High-Temperature Durability: Cast stainless steel turbine housing.
Enhanced Cooling: Features oil lubrication system, water-cooled turbo, and an intercooler to reduce incoming air temperature.
Variable Displacement Oil Pump: Optimizes oil pressure and fuel economy by reducing engine parasitic losses.
Intelligent Oil-Life Monitor: For up to 1-year/10,000-mile oil change intervals.
Advanced Fuel Delivery: Gasoline direct-injection and aggressive deceleration fuel shutoff (ADFSO).
Fail-Safe Cooling System: Ensures engine protection under various conditions.
Smart-Charging Alternator: Enhances battery management.
Timing Chain: Ensures reliable operation.
The exhaust manifold is integrated with the cast-aluminum cylinder head and is surrounded by a coolant jacket. This design keeps cylinder head temperatures down, enhancing the durability and reliability of the engine.
Vehicles Featuring the 2.0L EcoBoost® Engine
2024 Bronco Sport
The Bronco Sport leverages the 2.0L EcoBoost® engine to deliver a powerful and dynamic driving experience. Its advanced 4x4 system with a twin-clutch rear drive unit ensures excellent traction and stability on all terrains. This makes it an ideal choice for adventurous drivers who enjoy off-road excursions. The dual exhaust system not only adds a sporty aesthetic but also improves exhaust flow, enhancing engine performance. The vehicle also features Auto Start-Stop Technology, EcoBoost turbocharging and direct-injection technologies, and the Intelligent Oil-Life Monitor for optimized performance and maintenance.
Get The 2.0L EcoBoost® Engine In a 2024 Bronco Sport

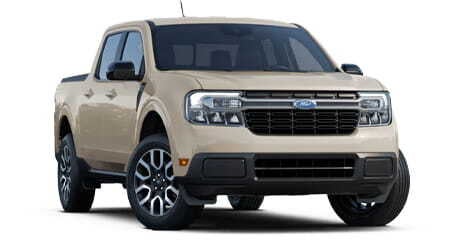

2024 Maverick
The Maverick’s 2.0L EcoBoost® engine offers a blend of performance and efficiency, making it suitable for a variety of driving conditions. Its compact size and advanced engineering provide excellent fuel economy without sacrificing power. The 8-speed automatic transmission ensures smooth gear transitions, enhancing the overall driving experience. The twin-scroll turbocharger reduces turbo lag and maintains consistent torque output. Additional features include Auto Start-Stop Technology, EcoBoost turbocharging and direct-injection technologies, and the Intelligent Oil-Life Monitor.
Get The 2.0L EcoBoost® Engine In a 2024 Maverick
2024 Edge
The Edge, equipped with the 2.0L EcoBoost® engine, offers a balance of power and efficiency. Its intelligent all-wheel drive system and advanced transmission ensure a smooth and responsive drive. The engine's turbocharged performance provides a dynamic driving experience, while its fuel efficiency makes it practical for everyday use. The engine's design features, such as the integrated exhaust manifold with a water jacket and adaptive knock control, enhance its durability and responsiveness. The Intelligent Oil-Life Monitor ensures timely maintenance.
Get The 2.0L EcoBoost® Engine In a 2024 Edge
2024 Escape
The Escape's 2.0L EcoBoost® engine combines performance with practicality. Its intelligent all-wheel drive system and advanced transmission deliver a smooth and engaging driving experience. The engine’s high compression ratio and efficient fuel delivery systems ensure that it provides both power and excellent fuel economy. The twin-scroll turbocharger enhances responsiveness and maintains torque output across a wide range of RPMs. Additional features include Auto Start-Stop Technology, EcoBoost turbocharging and direct-injection technologies, and the Intelligent Oil-Life Monitor.
Get The 2.0L EcoBoost® Engine In a 2024 Ford Escape
